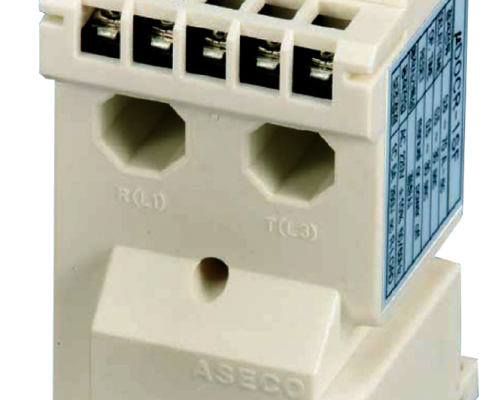

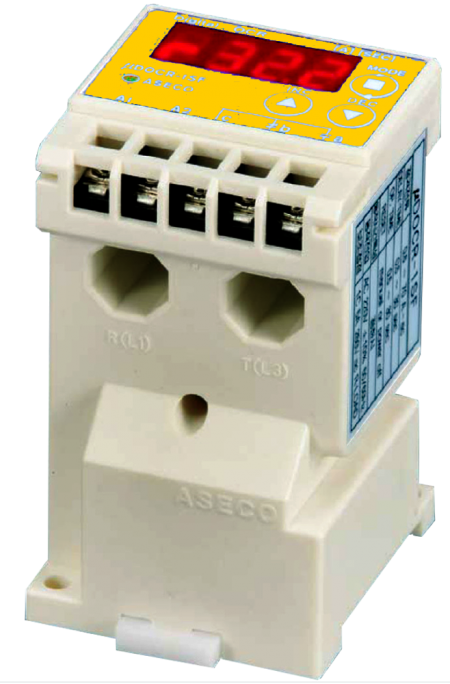

DO&UCR

Digital Current Relay (0.6~70A , 220VAC)
Current, Locked Rotor, Phase Loss, Auto Reset

  • MCU (Microprocessor Unit) based
  • Over & Under current / Phase Loss / Locked Rotor
  • Auto. / Manual / Electrical reset
  • LED Display 4 Digit 7 segment
  • Display the trip cause and trip current
  • Current Adjust 0.6~70A.
  • Independently adjustable starting & Trip delay
  • Mode setting can be by one touch 3 push switch
  • 2CT ตรวจจับกระแสไฟ ใช้ได้กับมอเตอร์ 2 สายและ 3 สาย
  • ติดตั้งบนรางมาตรฐาน 35 mm. หรือยึดด้วยน๊อตสกรู

Information

Product Feature

  • Advance Electric Control MCU Microprocessor
  • Over and Under Current protection
  • Auto / Manual / Electrical reset
  • Display trip cause and trip current

Protection type

  • Over and Under Current protection
  • Locked rotor for starting, In > 2…10 times OC setting
  • Sensitivity to phase reverse
  • Sensitivity to phase loss
  • Locked rotor for running, In > 1.5…5 times OC set- ting
  • Underload, In < UC setting
  • Overload, In > OC setting
  • Product specific application
  • Over & Under Current
  • Power AC Network frequency 50…60 Hz
  • Protection ajustment range 0.6…70 A
  • Tripping threshold 0.6…70 A 0.6…70 A (definite)
Specification

Technical Specification

SPECIFICATION คุณสมบัติ
การตั้งค่ากระแสไฟ Over & Under Current set 0.6~70A  5%
การตั้งเวลา

Time set

D-Time หน่วงเวลาการตัดขณะที่เริ่มสตาร์ท         0.5~30 วินาที
O-Time หน่วงเวลาตัดเมื่อกระแสไฟเกิน OC.  0.5~30 วินาที
Under-Time
เวลาในการตัด Fault หรือ Full load เป็นแบบเวลาคงที่ตามที่ตั้งค่าไว้   5%
Under current trip
 ขาดเฟส R ตัดภายใน 2 วินาที   5% หรือ 70% ของOC.
 ขาดเฟส T ตัดภายใน 2 วินาที   5% หรือ 70% ของOC.
Lock rotor ตัดภายใน 2 วินาที   5% ที่กระแสไฟ 250% ของ OC.
การตั้ง Auto reset Auto. reset (No Auto)  60 (1 ~ 60 Min.)  30 (0.5 ~ 30 Sec.)
การรีเซ็ท กดปุ่ม MODE        หรือตัดไฟเข้า AC1, AC2 หรือ Auto – reset (Only over and under trip)
แรงดันไฟเลี้ยง 220VAC  15% 50/60 Hz
หน้าสัมผัสใช้งาน 1-SPDT (1C) common (C) NC (b) NO (a) 5A 250VAC Resistive Load
การติดตั้ง รางมาตรฐานขนาด 35 mm. หรือยึดกับพื้นด้วยน๊อตสกรู
กำาลังสูญเสีย น้อยกว่า  2 W

Display

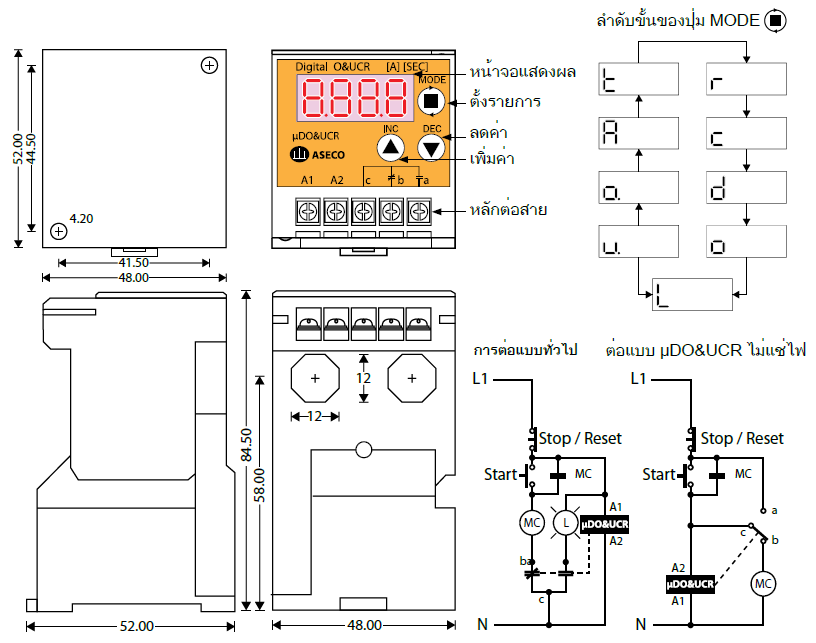

DWG
